Laboratory Vacuum Filtration Systems for Liquid Processing

Vacuum filtration systems are laboratory filtration consumables designed for liquid clarification, sterile filtration, and sample preparation. During operation, negative pressure generated by an external vacuum pump draws the liquid through a microporous membrane, retaining particles, precipitates, microorganisms, and other suspended contaminants. They are suitable for filtering cell culture media, buffers, reagents, biological fluids, and other aqueous solutions for sample preparation, sterile filtration, and liquid clarification before experiments.

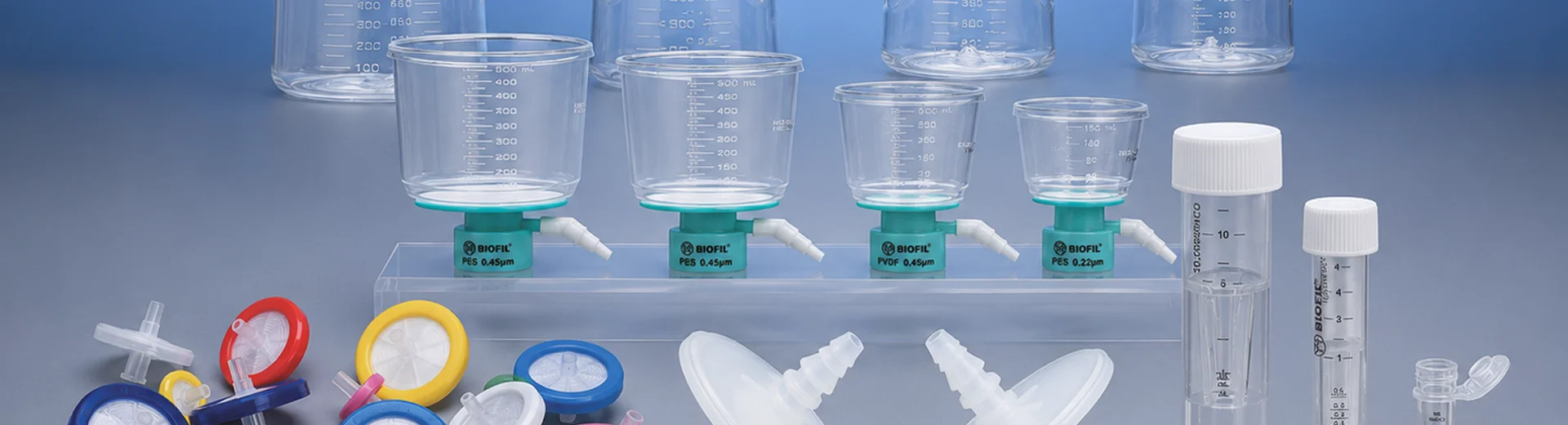

Four vacuum filtration systems with funnels and receiver bottles in different sizes.

Structure
Specification
Features
Application

Structure

A vacuum filtration system typically consists of a top cap, graduated filtration funnel, microporous membrane, filtration connector, receiver bottle, and receiver cap.

Top Cap: Covers the filtration funnel to help reduce contamination during liquid handling and filtration.
Graduated Filtration Funnel: Holds the liquid to be filtered and includes volume graduations for monitoring the liquid volume.
Microporous Membrane: Located at the bottom of the filtration funnel, it retains particles and microorganisms. Different pore sizes and membrane materials are available for specific filtration requirements.
Filtration Connector: Connects the filtration funnel to the receiver bottle and includes a vacuum port for connection to vacuum tubing.
Receiver Bottle: Collects the filtered liquid and is commonly available in capacities of 150 mL, 250 mL, 500 mL, and 1000 mL.
Receiver Cap: Seals the receiver bottle after filtration for short-term storage or transfer of the filtrate.

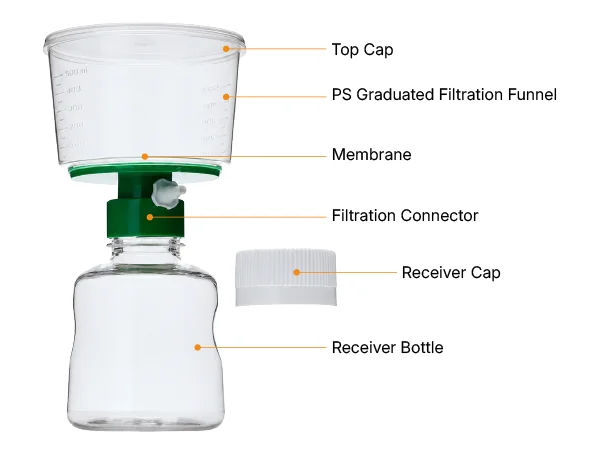

Vacuum filtration system with top cap, graduated funnel, membrane, connector, receiver and cap.

Vacuum filtration system structure

Specification

Membrane pore size:0.10 μm, 0.22 μm, 0.45 μm

Membrane material:MCE, NYLON, PVDF, CA, SFCA, PES, High-Flow PES

Filtration funnel capacity:150 mL, 250 mL, 500 mL, 1000 mL

Receiver bottle capacity:150 mL, 250 mL, 500 mL, 1000 mL

Table 1: Specifications of Vacuum Filtration Systems

No.	Membrane material	Pore size (μm)	Capacity (mL)	Membrane diameter (mm)	Units/Pack	Units/Case
VCE2201	Mixed Cellulose Ester (MCE)	0.22	150	Ø50	1	12
VCE2202	Mixed Cellulose Ester (MCE)	0.22	250	Ø50	1	12
VCE2203	Mixed Cellulose Ester (MCE)	0.22	500	Ø75	1	12
VCE2204	Mixed Cellulose Ester (MCE)	0.22	1000	Ø91	1	12
VCE4501	Mixed Cellulose Ester (MCE)	0.45	150	Ø50	1	12
VCE4502	Mixed Cellulose Ester (MCE)	0.45	250	Ø50	1	12
VCE4503	Mixed Cellulose Ester (MCE)	0.45	500	Ø75	1	12
VCE4504	Mixed Cellulose Ester (MCE)	0.45	1000	Ø91	1	12
VDF1001	Polyvinylidene Fluoride (PVDF)	0.10	150	Ø50	1	12
VDF1002	Polyvinylidene Fluoride (PVDF)	0.10	250	Ø50	1	12
VDF1003	Polyvinylidene Fluoride (PVDF)	0.10	500	Ø75	1	12
VDF1004	Polyvinylidene Fluoride (PVDF)	0.10	1000	Ø91	1	12
VDF2201	Polyvinylidene Fluoride (PVDF)	0.22	150	Ø50	1	12
VDF2202	Polyvinylidene Fluoride (PVDF)	0.22	250	Ø50	1	12
VDF2203	Polyvinylidene Fluoride (PVDF)	0.22	500	Ø75	1	12
VDF2204	Polyvinylidene Fluoride (PVDF)	0.22	1000	Ø91	1	12
VDF4501	Polyvinylidene Fluoride (PVDF)	0.45	150	Ø50	1	12
VDF4502	Polyvinylidene Fluoride (PVDF)	0.45	250	Ø50	1	12
VDF4503	Polyvinylidene Fluoride (PVDF)	0.45	500	Ø75	1	12
VDF4504	Polyvinylidene Fluoride (PVDF)	0.45	1000	Ø91	1	12
VES1001	Polyethersulfone (PES)	0.10	150	Ø50	1	12
VES1002	Polyethersulfone (PES)	0.10	250	Ø50	1	12
VES1003	Polyethersulfone (PES)	0.10	500	Ø75	1	12
VES1004	Polyethersulfone (PES)	0.10	1000	Ø91	1	12
VES2201	Polyethersulfone (PES)	0.22	150	Ø50	1	12
VES2202	Polyethersulfone (PES)	0.22	250	Ø50	1	12
VES2203	Polyethersulfone (PES)	0.22	500	Ø75	1	12
VES2204	Polyethersulfone (PES)	0.22	1000	Ø91	1	12
VES4501	Polyethersulfone (PES)	0.45	150	Ø50	1	12
VES4502	Polyethersulfone (PES)	0.45	250	Ø50	1	12
VES4503	Polyethersulfone (PES)	0.45	500	Ø75	1	12
VES4504	Polyethersulfone (PES)	0.45	1000	Ø91	1	12
VNY2201	Nylon	0.22	150	Ø50	1	12
VNY2202	Nylon	0.22	250	Ø50	1	12
VNY2203	Nylon	0.22	500	Ø75	1	12
VNY2204	Nylon	0.22	1000	Ø91	1	12
VNY4501	Nylon	0.45	150	Ø50	1	12
VNY4502	Nylon	0.45	250	Ø50	1	12
VNY4503	Nylon	0.45	500	Ø75	1	12
VNY4504	Nylon	0.45	1000	Ø91	1	12
VCA2201	Cellulose Acetate (CA)	0.22	150	Ø50	1	12
VCA2202	Cellulose Acetate (CA)	0.22	250	Ø50	1	12
VCA2203	Cellulose Acetate (CA)	0.22	500	Ø75	1	12
VCA2204	Cellulose Acetate (CA)	0.22	1000	Ø91	1	12
VCA4501	Cellulose Acetate (CA)	0.45	150	Ø50	1	12
VCA4502	Cellulose Acetate (CA)	0.45	250	Ø50	1	12
VCA4503	Cellulose Acetate (CA)	0.45	500	Ø75	1	12
VCA4504	Cellulose Acetate (CA)	0.45	1000	Ø91	1	12
VES2211	Polyethersulfone (PES Express High Flow Rate)	0.22	150	Ø50	1	12
VES2212	Polyethersulfone (PES Express High Flow Rate)	0.22	250	Ø50	1	12
VES2213	Polyethersulfone (PES Express High Flow Rate)	0.22	500	Ø75	1	12
VES2214	Polyethersulfone (PES Express High Flow Rate)	0.22	1000	Ø91	1	12
VES4511	Polyethersulfone (PES Express High Flow Rate)	0.45	150	Ø50	1	12
VES4512	Polyethersulfone (PES Express High Flow Rate)	0.45	250	Ø50	1	12
VES4513	Polyethersulfone (PES Express High Flow Rate)	0.45	500	Ø75	1	12
VES4514	Polyethersulfone (PES Express High Flow Rate)	0.45	1000	Ø91	1	12
VCA2211	Surfactant-Free Cellulose Acetate (SFCA)	0.22	150	Ø50	1	12
VCA2212	Surfactant-Free Cellulose Acetate (SFCA)	0.22	250	Ø50	1	12
VCA2213	Surfactant-Free Cellulose Acetate (SFCA)	0.22	500	Ø75	1	12
VCA2214	Surfactant-Free Cellulose Acetate (SFCA)	0.22	1000	Ø91	1	12
VCA4511	Surfactant-Free Cellulose Acetate (SFCA)	0.45	250	Ø50	1	12
VCA4512	Surfactant-Free Cellulose Acetate (SFCA)	0.45	150	Ø50	1	12
VCA4513	Surfactant-Free Cellulose Acetate (SFCA)	0.45	500	Ø75	1	12
VCA4514	Surfactant-Free Cellulose Acetate (SFCA)	0.45	1000	Ø91	1	12

Features

Pre-Sterilized Options. Available as pre-sterilized and individually packaged units to reduce contamination risk during preparation and filtration.
Low Liquid Retention. The optimized internal structure helps reduce residual liquid after filtration and improve sample recovery.
Easy Vacuum Connection. The integrated vacuum port connects directly to vacuum tubing for convenient and efficient filtration.
Convenient Liquid Storage. The receiver bottle can be sealed with the supplied cap after filtration for short-term storage or transfer.

Applications

Cell culture: Filter culture media, serum, and supplements to ensure sterile conditions.
Buffer solution preparation: Remove particulates or precipitates to ensure experimental liquid clarity.
Reagent clarification: Remove suspended impurities to ensure downstream experimental accuracy.
General laboratory filtration: Used for biological, chemical, and environmental sample processing.

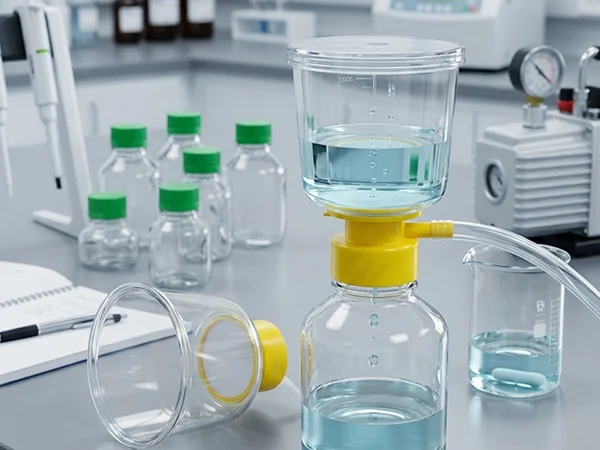

Vacuum filtration system with blue liquid, hose and pump for cell culture medium filtration.

Vacuum filtration system for sterile filtration of cell culture medium
